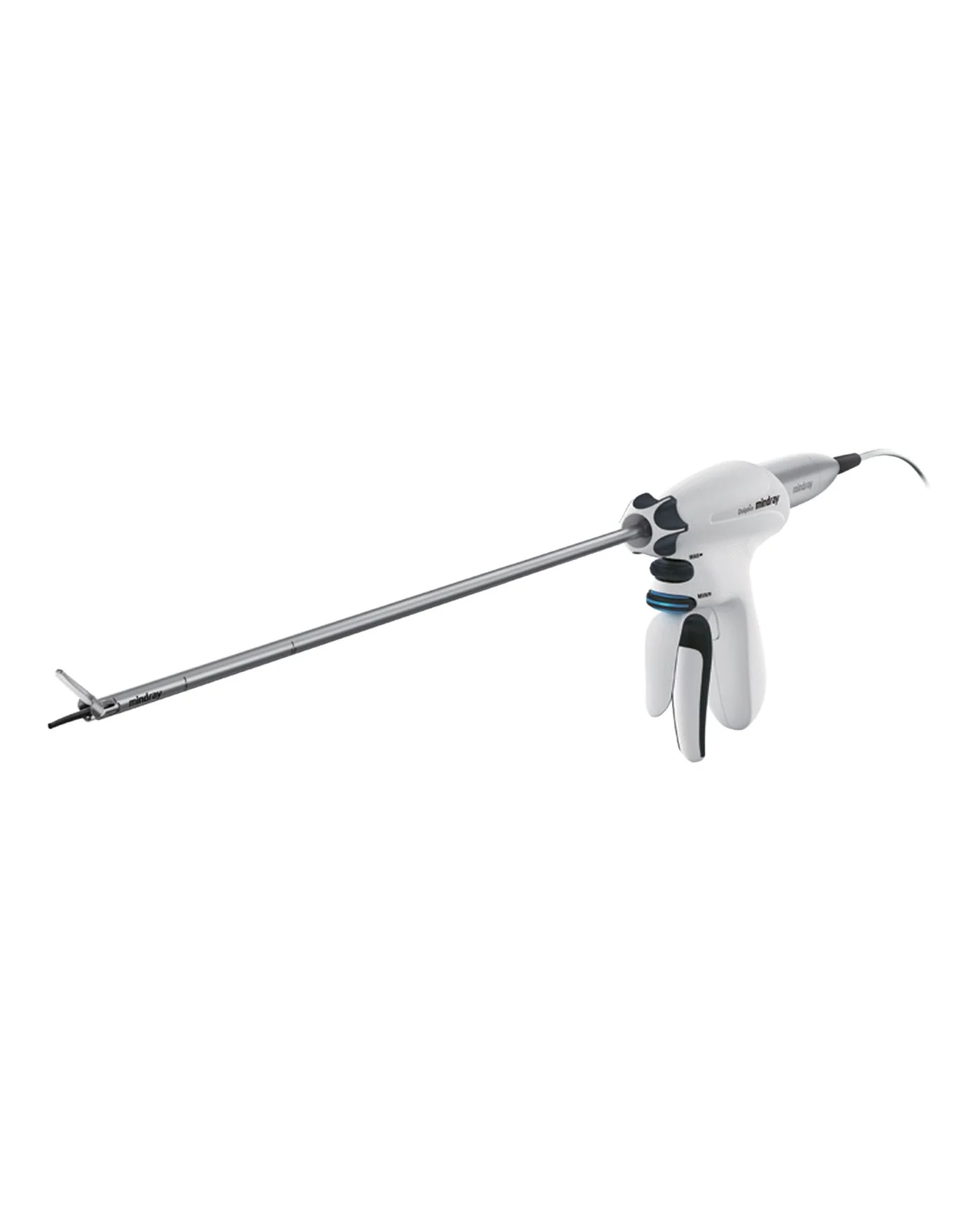

Medical instrument with a long, slim stainless steel probe and a white handle, used for sinus or ear procedures.

Ultrasonic surgical instrument

Tapping into the needs of healthcare, focusing on clinical pain points, and breaking through technology blockades to create Advanced compact, Advanced accurate and Advanced precise surgical equipment.

Higher Precision, Easier Operation

  • Ultrasonic Surgical Instrument

    • Thin and narrow design for greater manoeuvrability in tight spaces.

    • Rounded edges and corners to avoid scratching the blood vessels. All-round coating to reduce adhesion and wiping during surgery.

    • Available in 45cm, 36cm, 23cm & 14cm lengths.

  • Ultrasonic Module

    • Smart Tissue Sensing (STS)

      Automatic reduction of output power after tissue disconnection means less risk of accidental scalding from ultrasonic surgical instrument.

    • Enhanced Vessel Sealing (EVS)

      Precise output of energy based on the status of the blood vessel, providing firmer and safer 5mm vessel sealing.

      HF Electro Surgical Module

    • Precise Energy Control Algorithm - Real-time precise energy regulation based on tissue characteristics ensures smooth cutting of different tissues with HF instrument.

    • Extraordinary Energy Compensation Algorithm

      By compensating for transmission loss, the advanced algorithm ensures consistent energy delivery to tissues aligned with your settings, to eliminate attenuation over time.

    • Faster vessel transection: Faster blood vessel clotting times than the industry-leading benchmark across both 3–5 mm and ≥5 mm vessels (4.90 s vs 5.03 s; 5.50 s vs 5.68 s), indicating improved procedural efficiency without compromising consistency.

    • Stronger, safer vessel sealing: Higher burst pressure performance compared to the industry-leading level in both 5–7 mm and ≥7 mm vessels (982 mmHg vs 964 mmHg; 932 mmHg vs 902 mmHg), demonstrating more secure vessel sealing and enhanced safety margins.

Doctor performing robotic-assisted surgery with medical equipment.

Higher Precision, Easier Operation

In collaboration with the UP700, the Ultrasonic surgical instrument provides a surgical energy system that combines ultrasonic, bipolar, and monopolar energy modalities in one platform to allow precise tissue dissection, coagulation, and vessel sealing in minimally invasive surgeries.

Surgeons performing a medical procedure in an operating room, with surgical instruments and monitors visible.
Four different sizes of white and grey handheld precision tools with long metal tips, labeled with lengths 45cm, 36cm, 23cm, and 14cm.
Comparison of two dental tools showing the top tool 20% thinner and the bottom tool 20% narrower, with the brand name 'mindray' on the handle.
Close-up of a hair curling iron featuring anti-adhesion coating and anti-scratch blade tip.
A medical device with a touchscreen interface showing various controls and settings for ultrasound and monopolar modes, with a gloved hand interacting with a button labeled 'Blend'.
